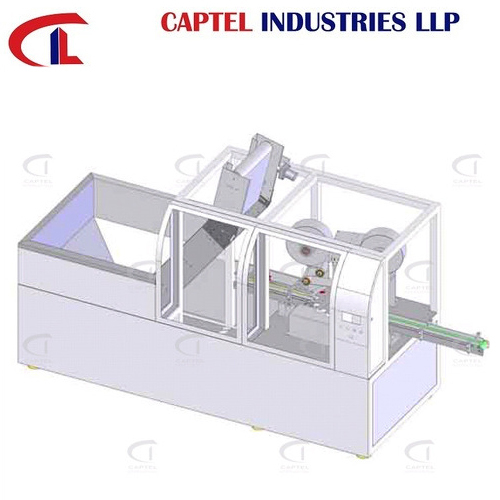

Wadding (Liner Fixing) Machines for Fixing Pre-Cut Liners in Closures

Product Description

Wadding Liner Fixing Machines for Fixing PreCut Liners in Closures

This machine is capable of inserting and fixing the wads into the caps The caps will be loaded into a Vibratory Rotarty hopper or Elevator Hopper manually The feeder supplies the caps adequately as required to the machine in the oriented fashion The conveyor transfers the cap to a starwheel where the caps are indexed at predefined locations The wads are loaded into a column chute if in rolls or into a vibratory feeder if loose packed liners normally for EPE or Foam liners which is placed above the wad picking station A vacuum picker assembly is placed below the column chute which picks the wad one by one and places on the top portion of the indexing starwheel above the caps When the cap and the wad moves to the next station a pusher pushes the wad into the cap and is firmly fixed The assembled cap will be counted and will exit from the coveyor The machine will be capable of handling various types and sizes of caps and wads with the help of change parts

Available with or without Hot Gluing System

Speeds Available  60 120 and 190 Caps per minute

Suitable for use with Two piece or One piece Liners and EPE liners
